Model:
Vaccess2Price:
USD

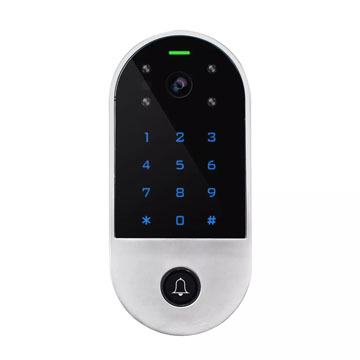

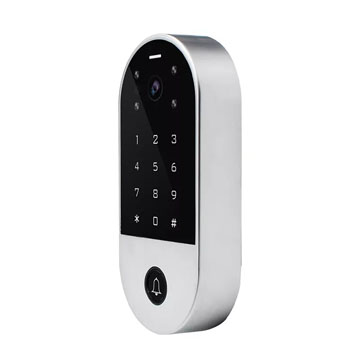

Tuya WIFI Video Intercom Access
Video Intercom System with Doorbell Tuya WiFi Android & iOS APP Monitor Smart 1080p Resolution
Intercom
> 2.4G WiFi connection,
> Android and iOS available
> Full duplex voice intercom
> 2MP+wide angle camera and night vision
> Support TF card with unlimited capacity
> Support motion detection, playback, take picture/video, unlock remotely
Access Control
> Touch key with one relay, 1000 users (988 common+2 panic+10 visitor)
> PIN Length: 4~6 digits
> EM card, Mf card optional
> Wiegand 26~44 bits in put & output
> Can be used as Wiegand reader with LED & buzzer
> User data can be transferred
> 2 devices can be interlocked for 2 doors
| Video Intercom | Network | 2.4G WiFi connection |
| Pixel | 2.0Mpx (1080P) | |
| Visual Angle | Horizontal 140° wide angle | |
| Night Vision | IR-CUT (Colorful at daytime, black and white at night) | |
| Extended Memory | TF card with unlimited capacity | |
| Intercom | Full duplex voice intercom | |
| Other Functions | Motion detection; Playback; Take picture/video; Unlock remotely | |
| Access Control | User Capacity | 1000 |
| Common User | 988 | |
| Visitor User | 10 | |
| Panic User | 2 | |
| PIN Length | 4~6 digits | |
| Proximity Card Reader | EM or Mifare | |
| Radio Technlogy | 125KHz/13.56MHz | |
| Read Range | 2~6cm | |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output | |
| Relay | One (NO, NC, Common) | |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) | |
| Lock Output Load | 2 Amp Maximum | |
| Wiegand Interface | EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits input & output (Factory default: Wiegand 34bits) | |
| PIN Output | 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) | |
| Electric | Operating Voltage | DC 12V |
| Idle Current | ≤ 150mA | |
| Active Current | ≤ 250mA | |
| Environment | Indoor | |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |
| Operating Humidity | 0%RH ~ 86%RH | |
| Materials | Zinc-Alloy | |
| Color | Sliver & Black | |

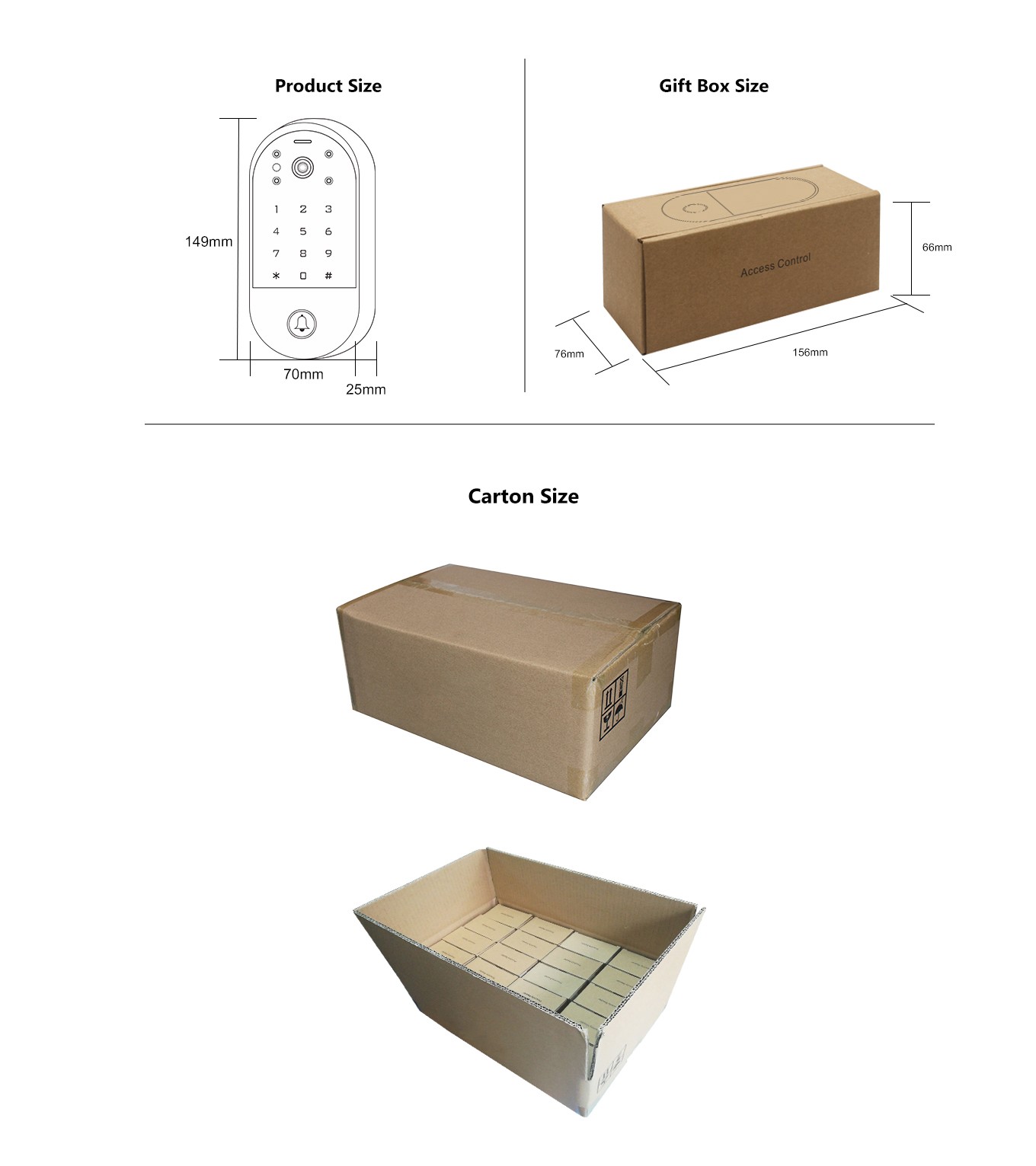

| Dimensions | L149 x W70 x H25 (mm) | |
| Unit Weight | 400g | |
| Shipping Weight | 510g |
|
|
