Model:
WC8EPrice:
USD

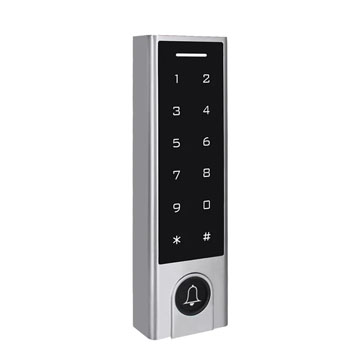

Wireless Access Kit

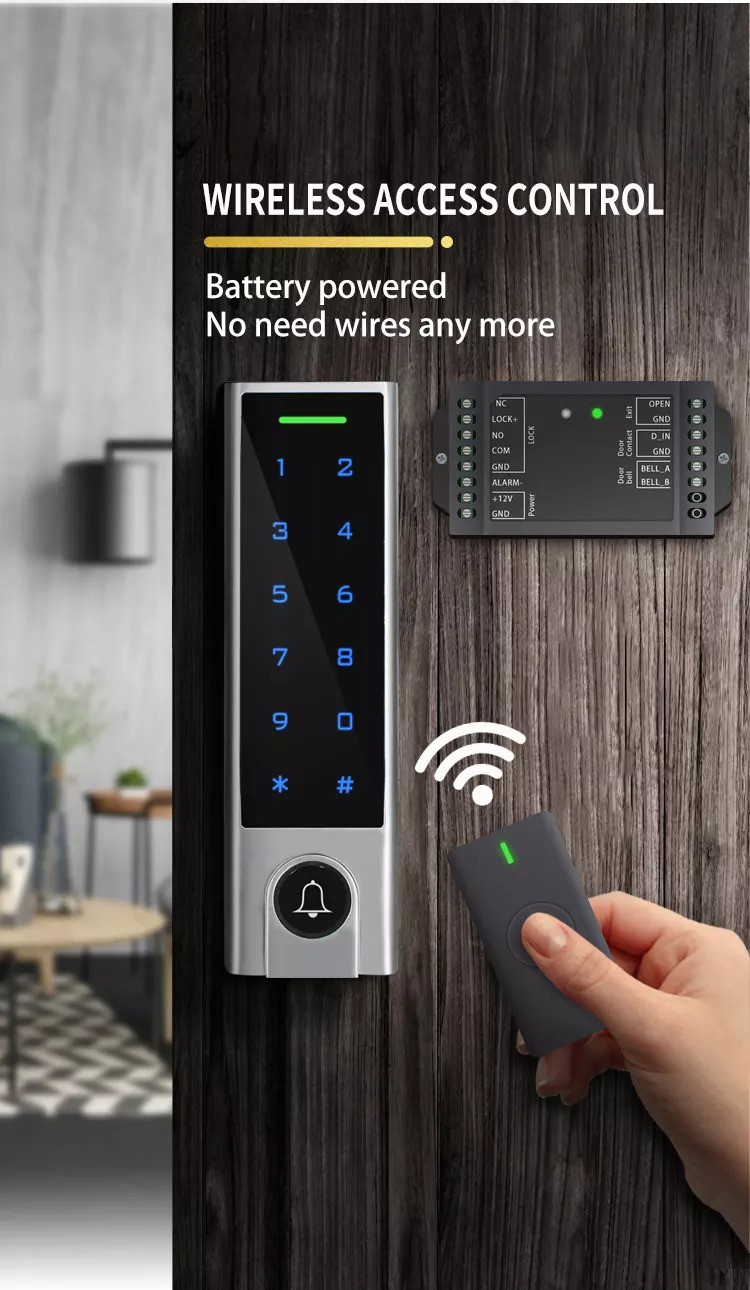

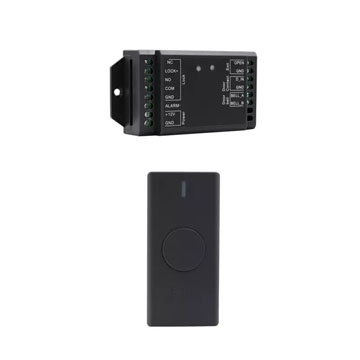

The WC8E is a single door wireless access control, consists of a wireless & waterproof keypad , a mini controller and a wireless exit button. TEA + Rolling Code of encryption algorithm and the split design guarantees higher-secure.
> 110V~240V AC Input, 12V DC Output

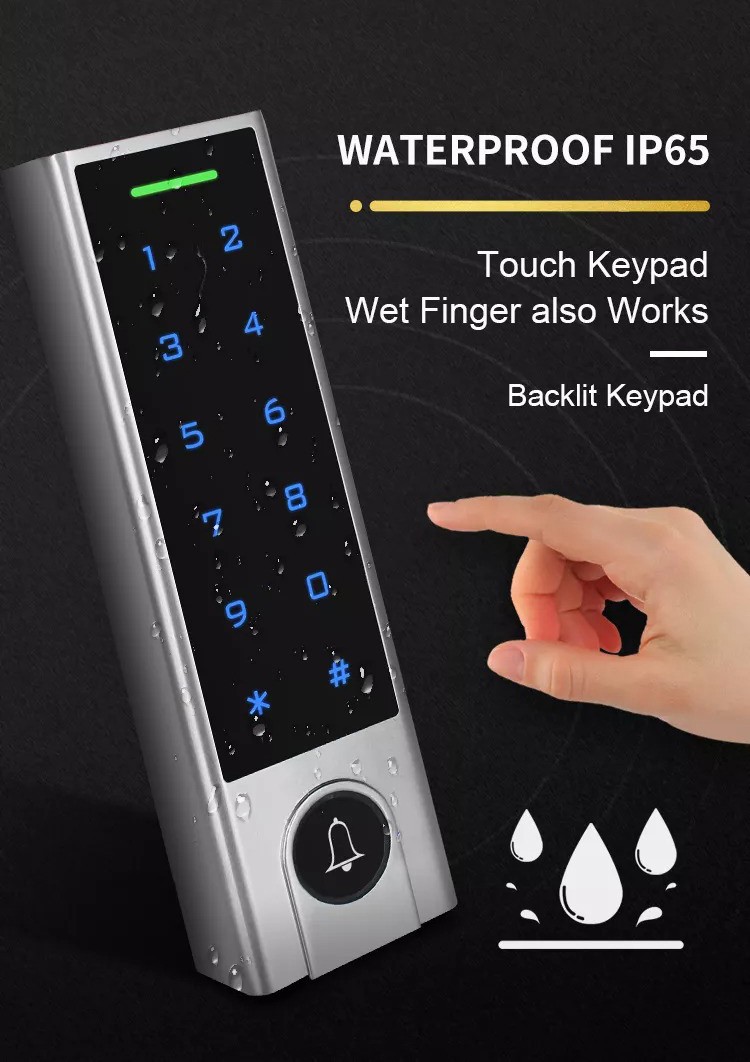

> Waterproof, conforms to IP65 (Wireless Keypad)
> Communication frequency: 433MHz

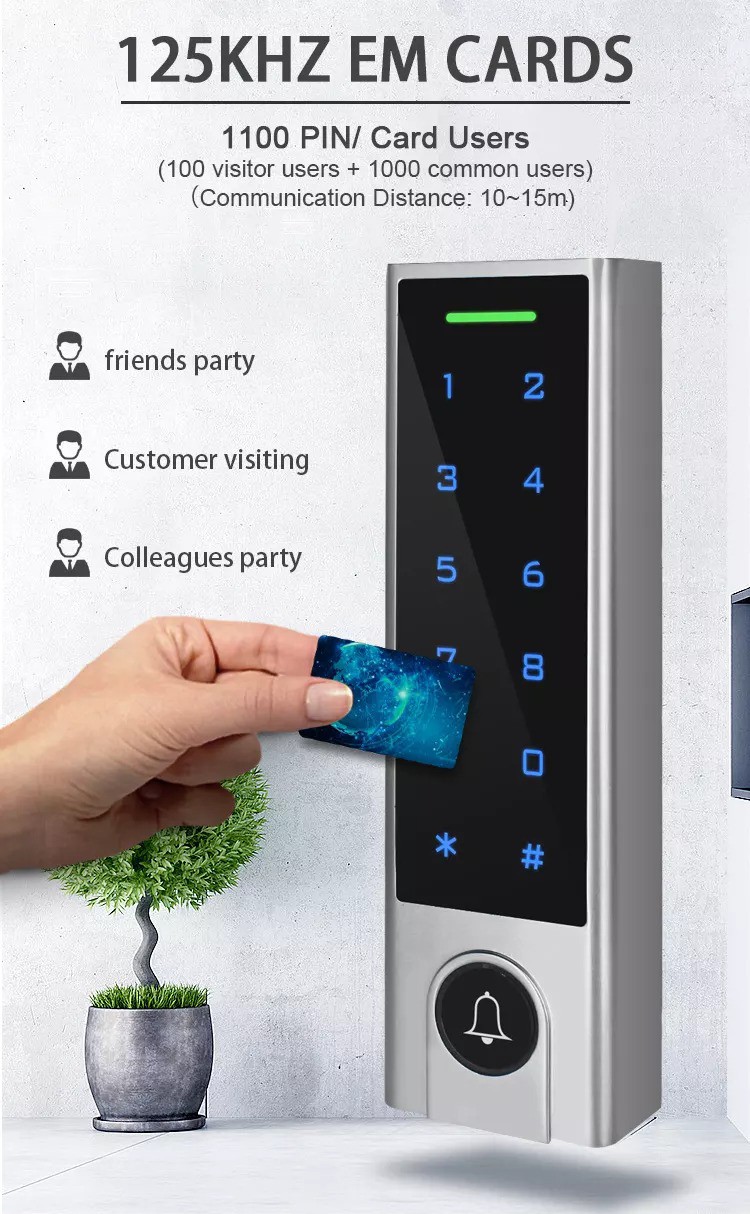

> 1100 PIN / card users (100 visitor users + 1000 common users)
> 125KHz EM Card
> PIN length: 4~8 digits
> Communication distance: 10~15m

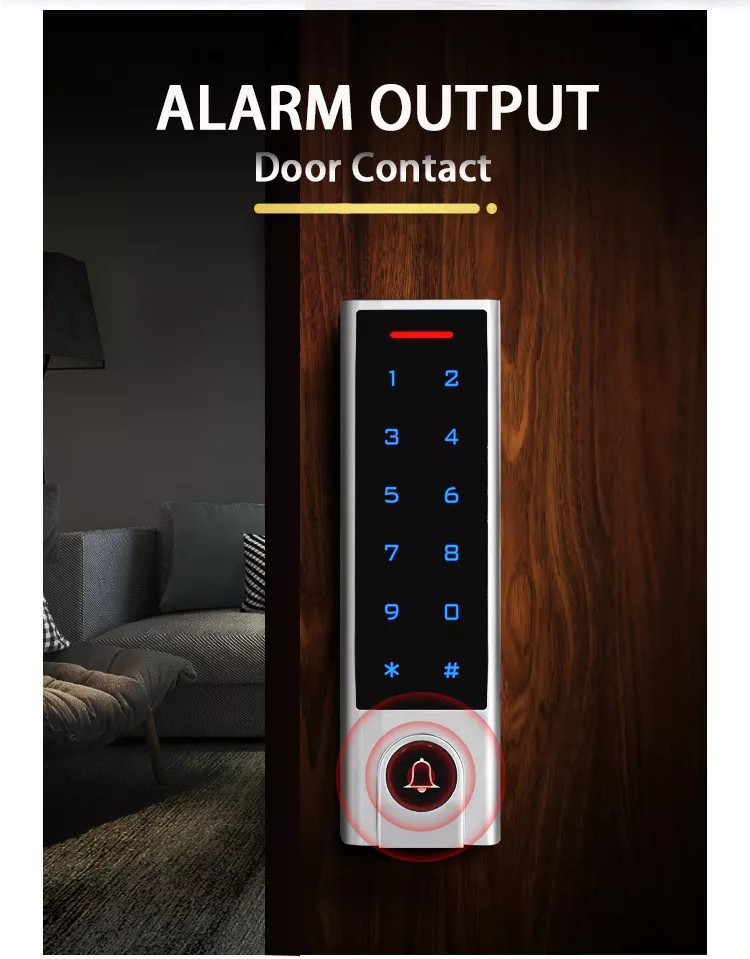

> Door contact, alarm and door bell output

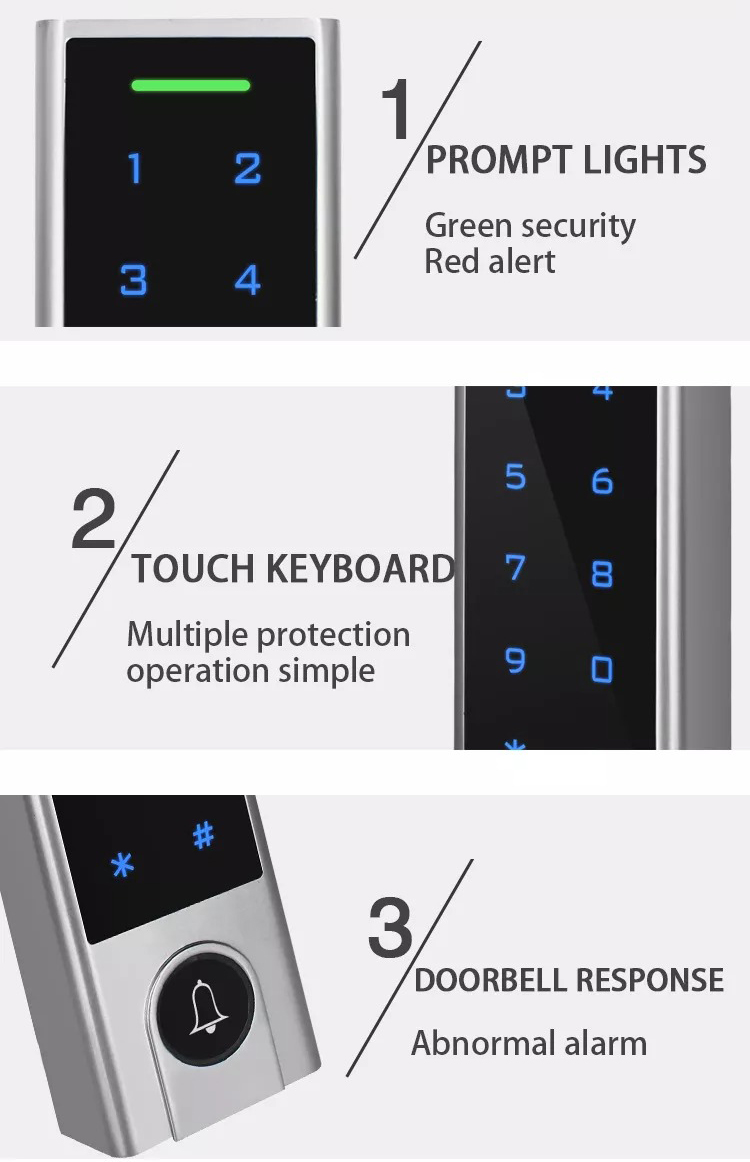

> Backlit keypad
> Pulse mode, toggle mode
> Tri-color LED status display
> Ultra low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA)
> Supports integrate 1 keypad and 1 exit button, or 2 keypads
| User Capacity | 1100 PIN / card users (1000 common users + 100 visitor users) |
| PIN Length | 4~8 Digits |
| Card Type | 125KHz EM Card |
| Operating Voltage | |

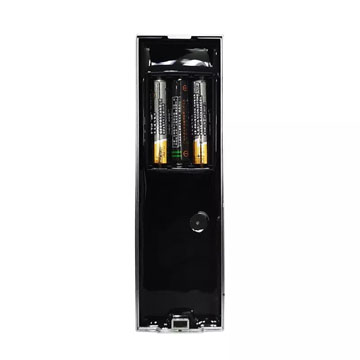

| Wireless Keypad | 3units of AAA batteries |

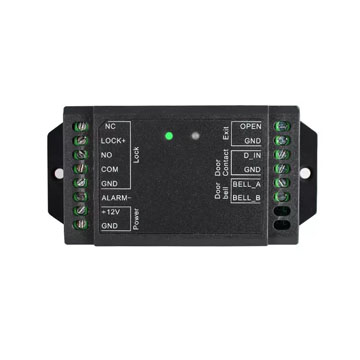

| Mini Controller | 12V DC |
| Wireless Exit Button | 2032 Lithium battery |
| Current | |
| Idle Current | Wireless Keypad: <10uA |
| Mini Controller: <20Ma | |
| Working Current | Wireless Exit Button: <10uA |
| Wireless Keypad: <80mA; | |
| Mini Controller: <50mA | |
| Wireless Exit Button: <30uA | |
| Communication Frequency | 433MHz |
| Communication Distance | 10~15m |
| Relay Contact Load | 2Amp Maximum |
| Environment | Outdoor (Wireless Keypad) |
| Operating Temperature | -40oC~60oC(-40oF~140oF) |
| Operating Humidity | 10%~9%RH |
| Physical | ABS Shell |

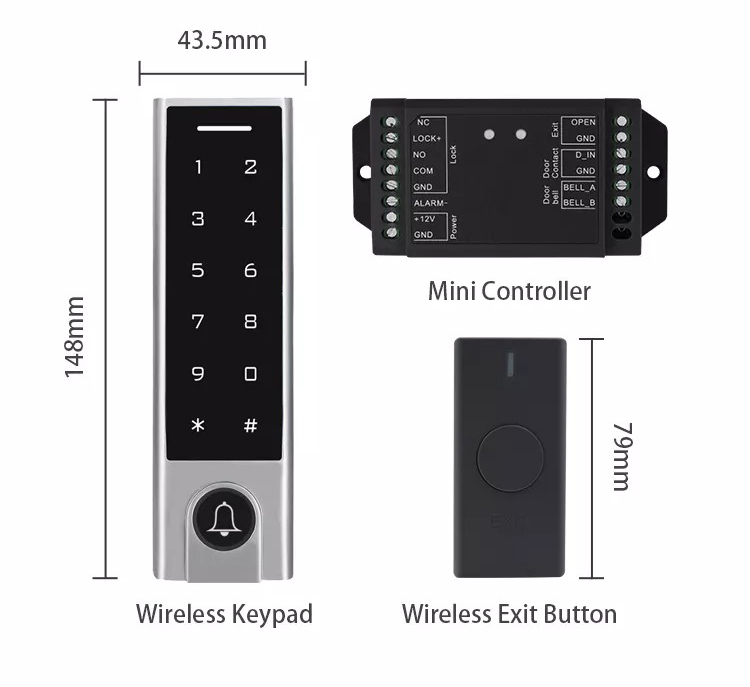

| Dimensions | Wireless Keypad: L148 x W43.5 x D22(mm) |
| Mini Controller: L85 x W50 x D25(mm) | |
| Wireless Exit Button: L80 x W38 x D15(mm) | |
| Unit Weight | Wireless Keypad: 300g |
| Mini Controller: 62g | |
| Wireless Exit Button:34g | |
| Shipping Weight | 450g |
|
|
