Model:
MA1Price:
USD

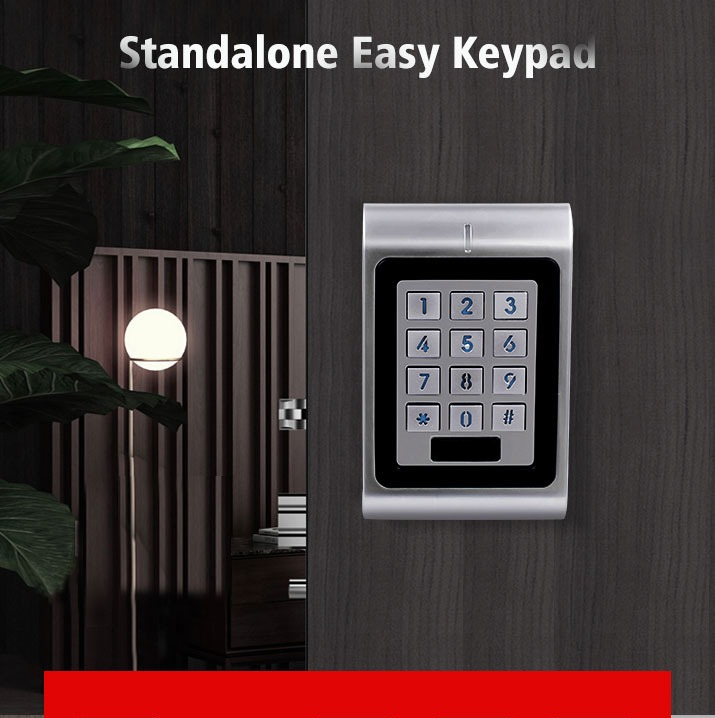

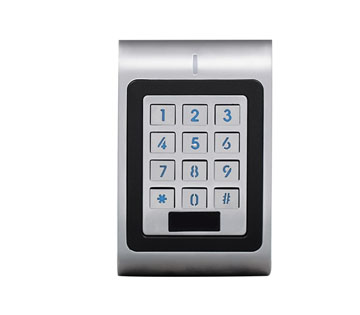

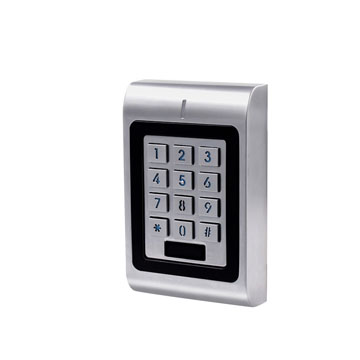

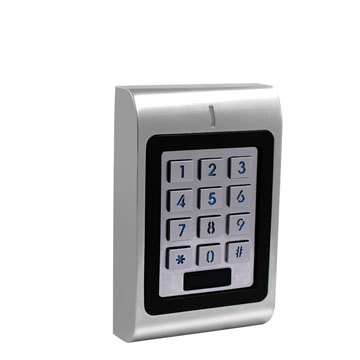

Outdoor Metal Easy Keypad
MA1 is a single entry standalone Access Control with integrated keypad and card reader.It is waterproof, suitable for outdoor application.
> Metal case, backlit keypad
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHz EM card
> PIN length: 4~6 digits
> Anti-tamper alarm
> Waterproof, IP66
| User Capacity | 1000 Cards/PINS |
| Normal Users | 990 |
| Visitor Users | 10 |
| Operating Voltage | 9~18V DC |
| Idle Current | 50mA |
| Active Current | 80mA |
| Keypad | 12 Keys |
| Proximity Card Reader | EM/Mifare Optional |

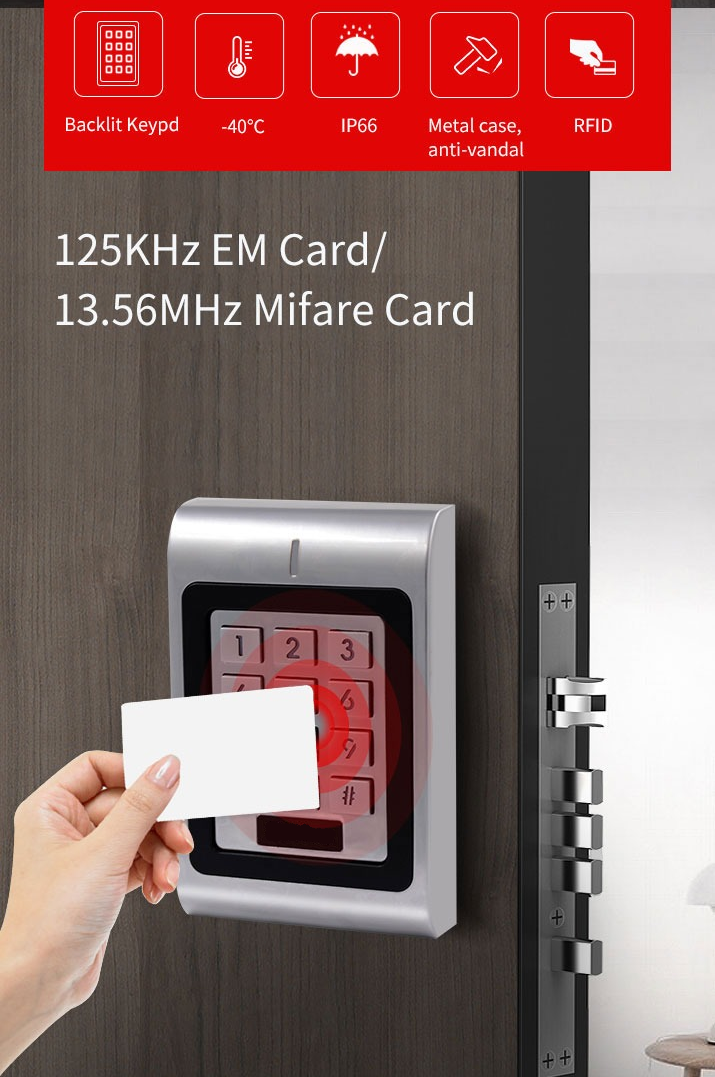

| Radio Technology | 125KHz EM Card/ 13.56MHz Mifare Card |
| Read Range | 3-6 cm |

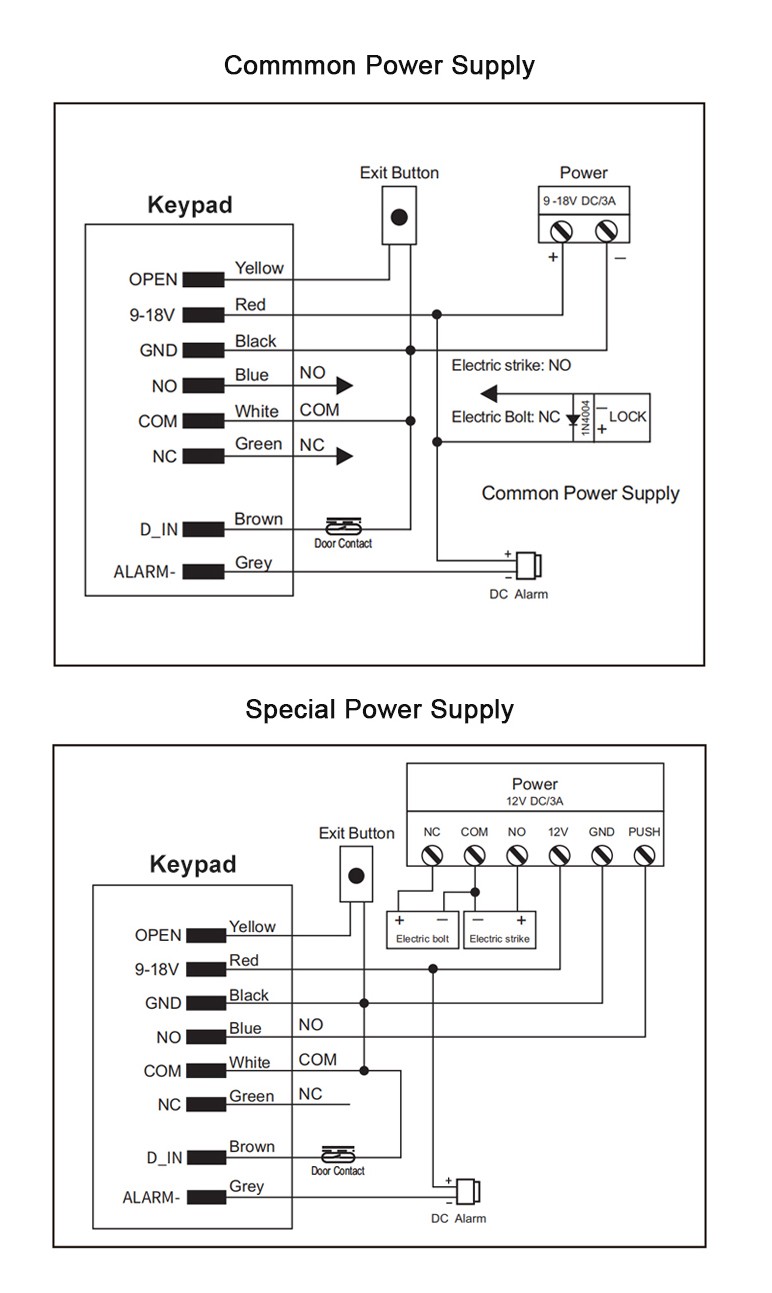

| Wiring Connections | Relay Output, Exit Button, Alarm, Door Contact |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 3 Amp Maximum |
| Environment | Outdoor (IP66) |
| Operating Temperature | -40°C~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | 10%RH-90%RH |
| Physical | Zinc- Alloy Enclosure |
| Surface Finish | Powder Coat |

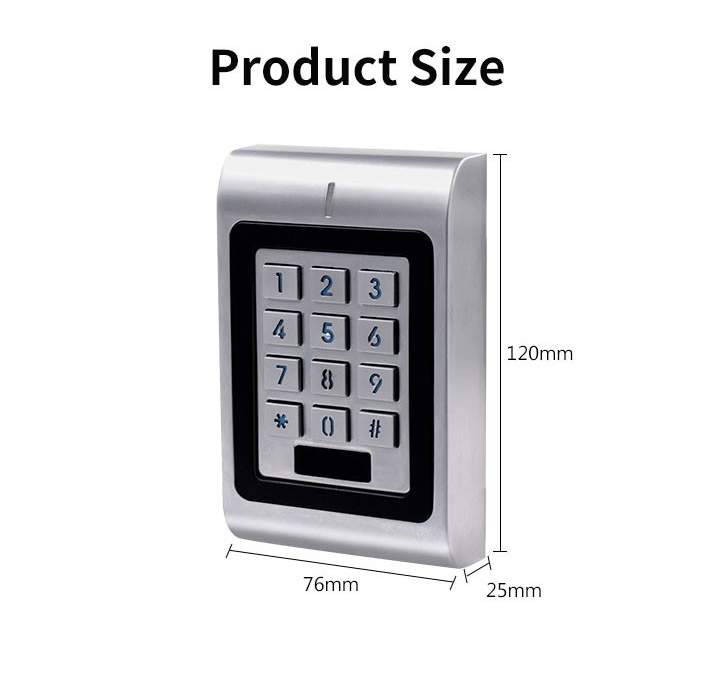

| Dimensions | 11.7L x7.6W x 2.5H (cm) |
| Unit Weight | 470g |
| Shipping Weight | 550g |
