Model:
ADO200Price:
USD

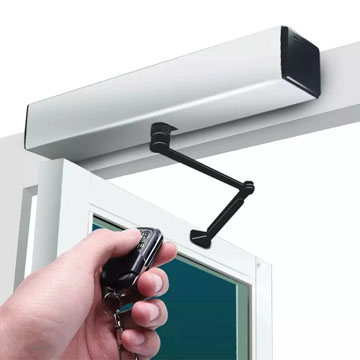

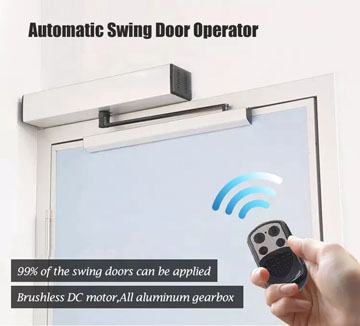

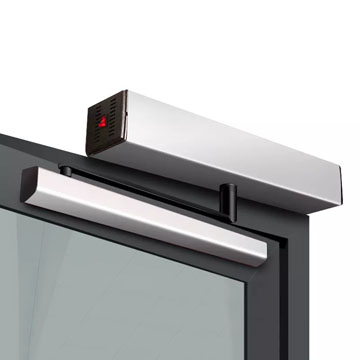

200 KG Automatic Swing Door Automatic Door Operator
Features

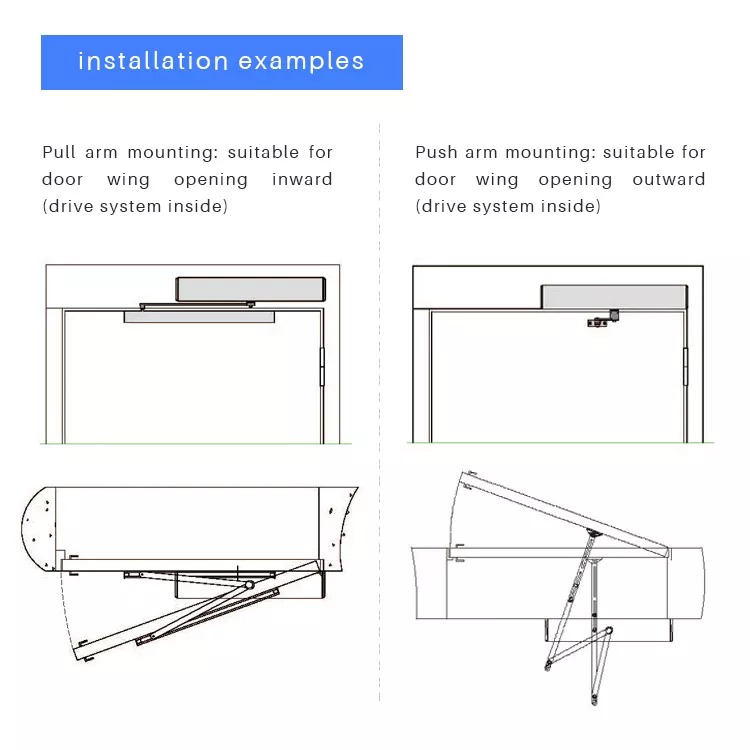

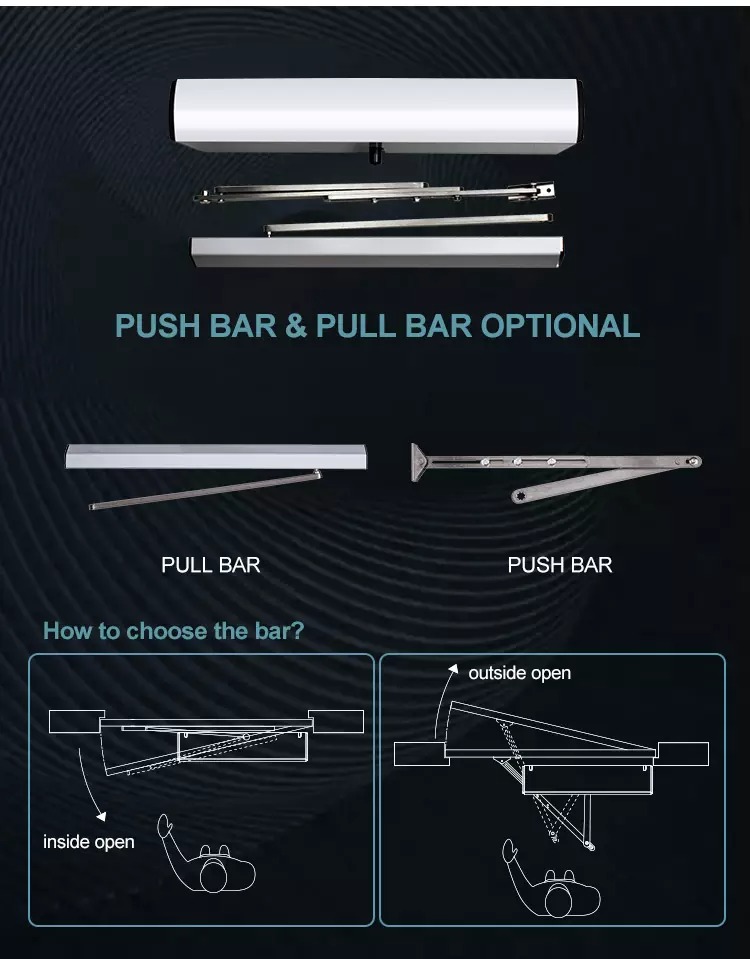

>Push bar & Pull bar optional

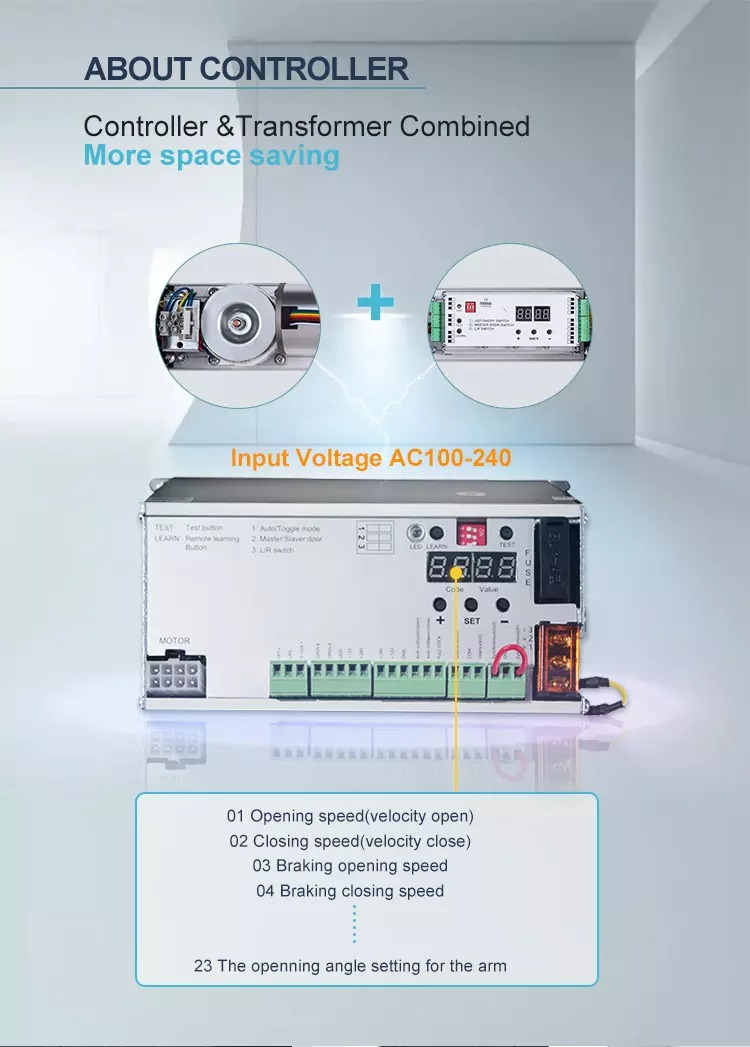

>Controller &Transformer Combined More space saving
>Input Voltage AC100-240

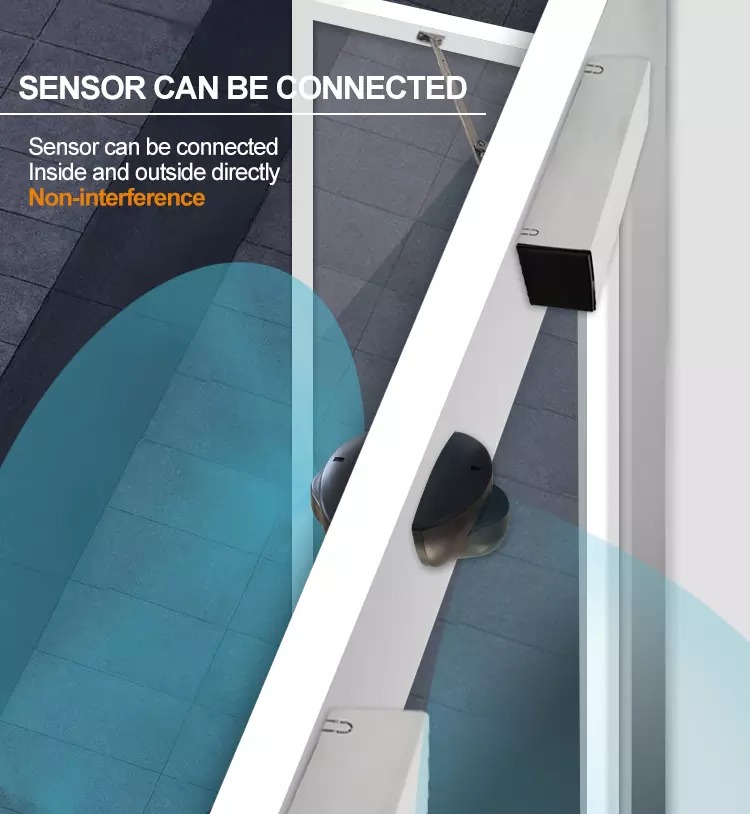

>Sensor can be connected Inside and outside directly Non-interference.

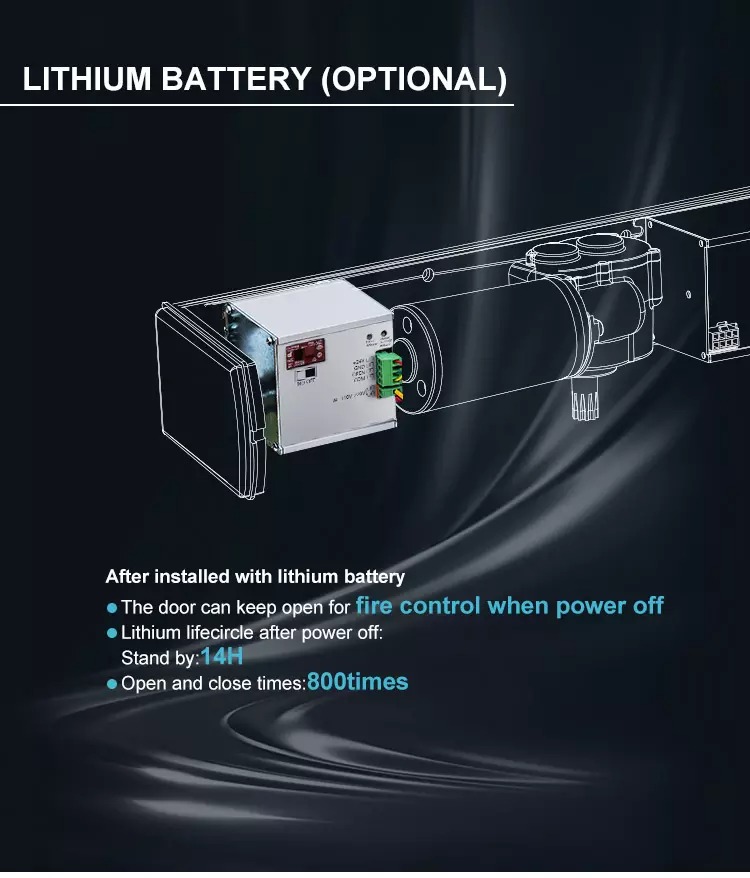

>Lithium battery (optional):The door can keep open for fire control when power off;
Lithium lifecircle after power off: Stand by:14H;Open and close times:800times

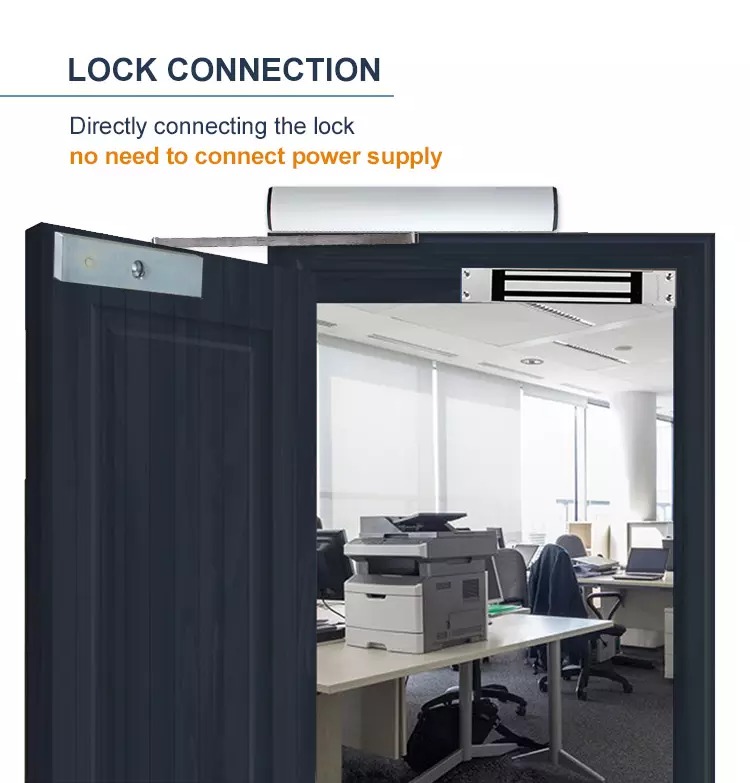

>Directly connecting the lock no need to connect power supply.

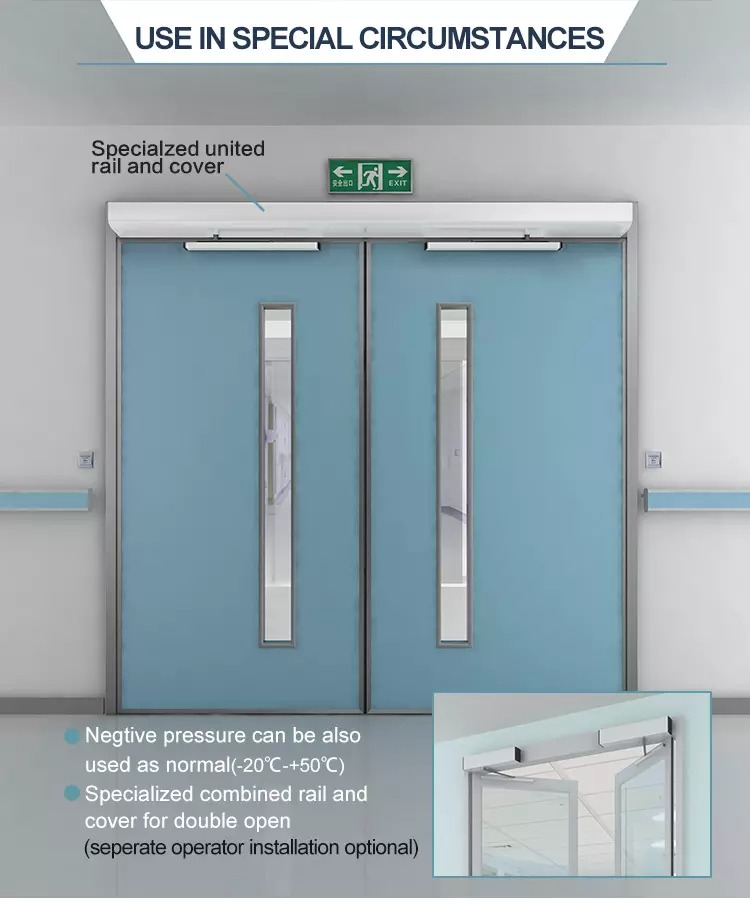

>Specialized combined rail and cover for double open (seperate operator installation optional)

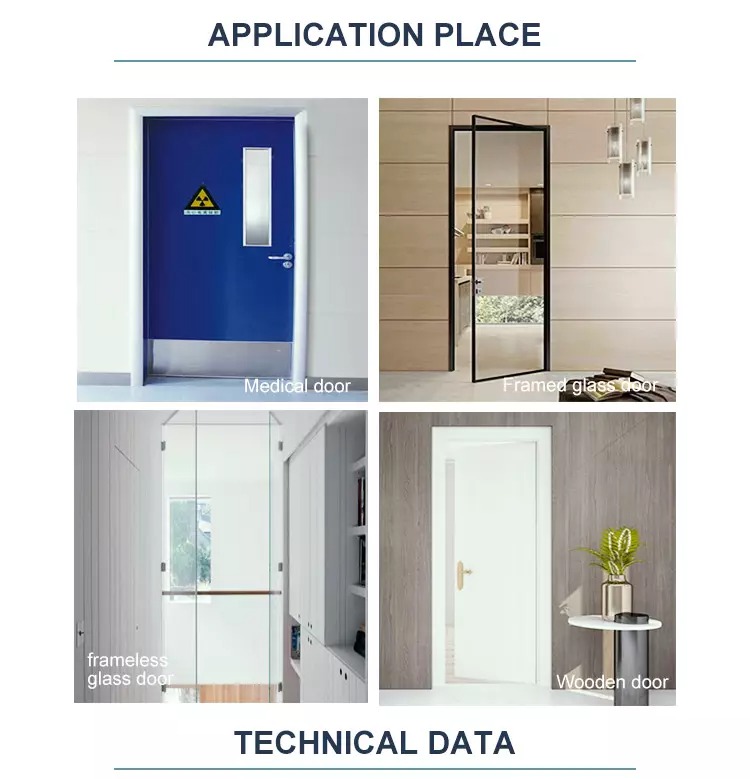

>Can be used for Medical door、Framed glass door、frameless glass door、Wooden door.
| Power Supply | AC 100V-240V |
| Active open time | 3-7s/90° |
| Hold open time | 0-60s |
| Temperature | -20℃-+55℃ |
| Protection class | IP21 |
| Product weight | 6KG |

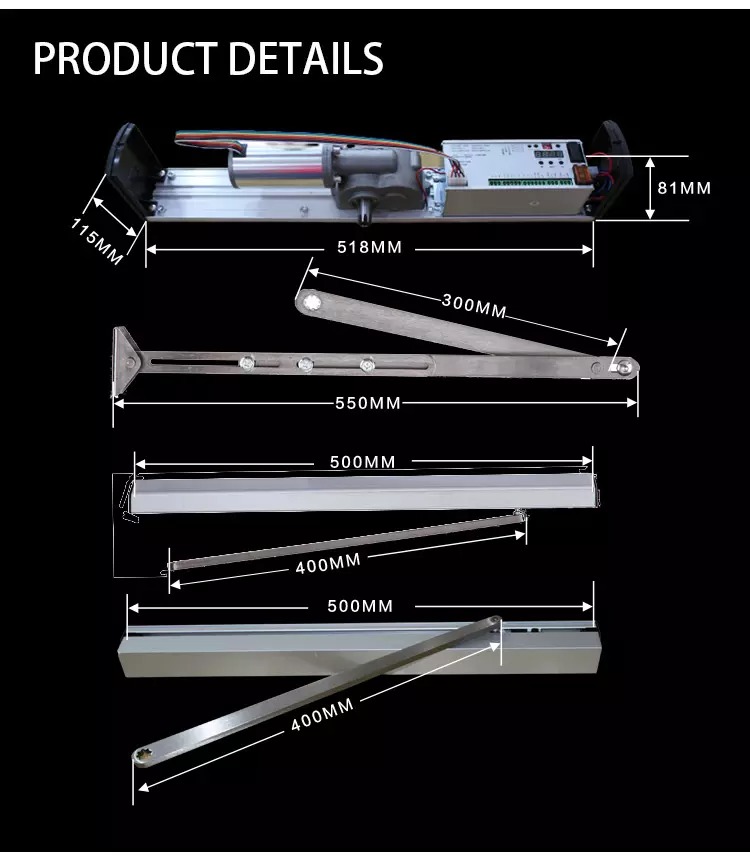

| 518Product size | 518*81*115mm(L*W*H) |
| Max open angle | 115° |
| Max door weight | 200KG |



|
|
