Model:
ADO300Price:
USD

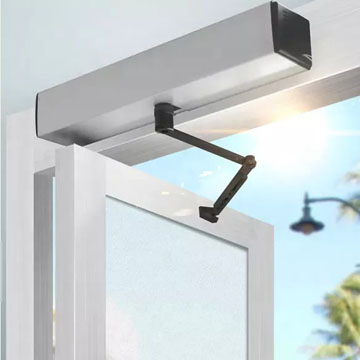

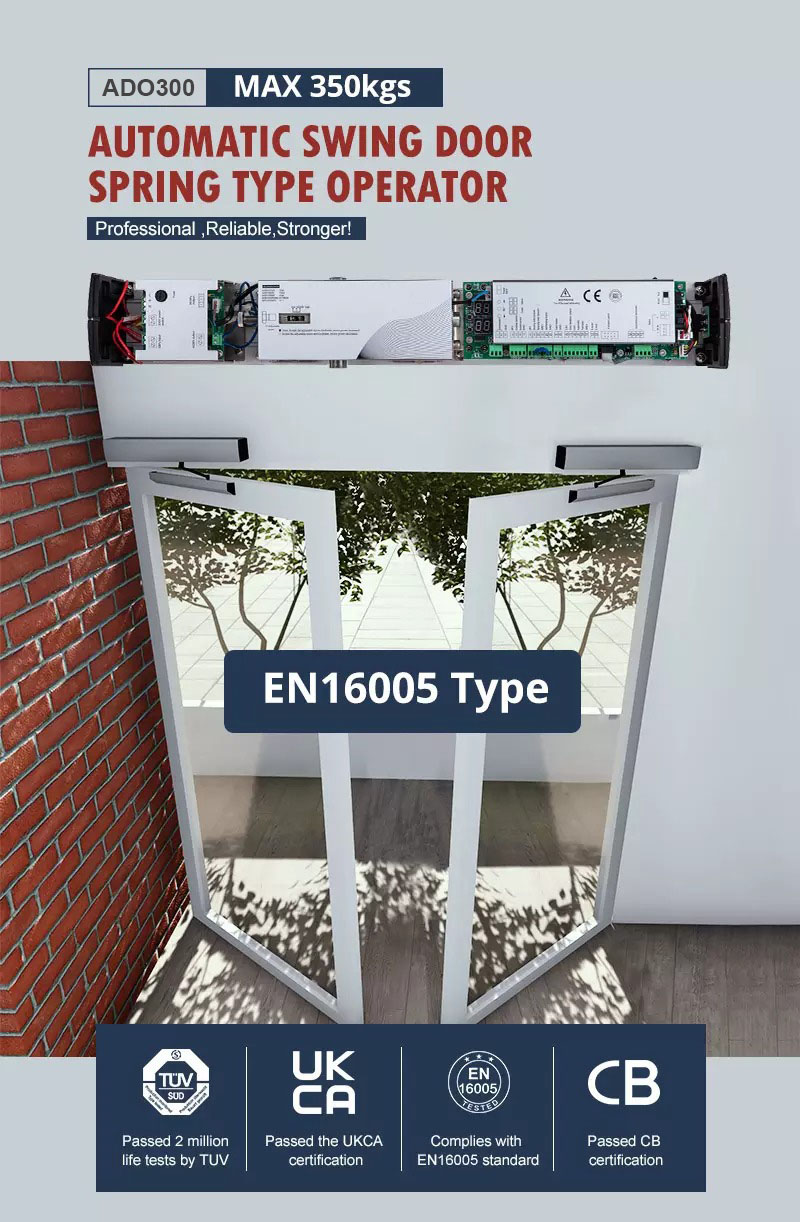

350 KG Automatic Swing Door Operator
Features

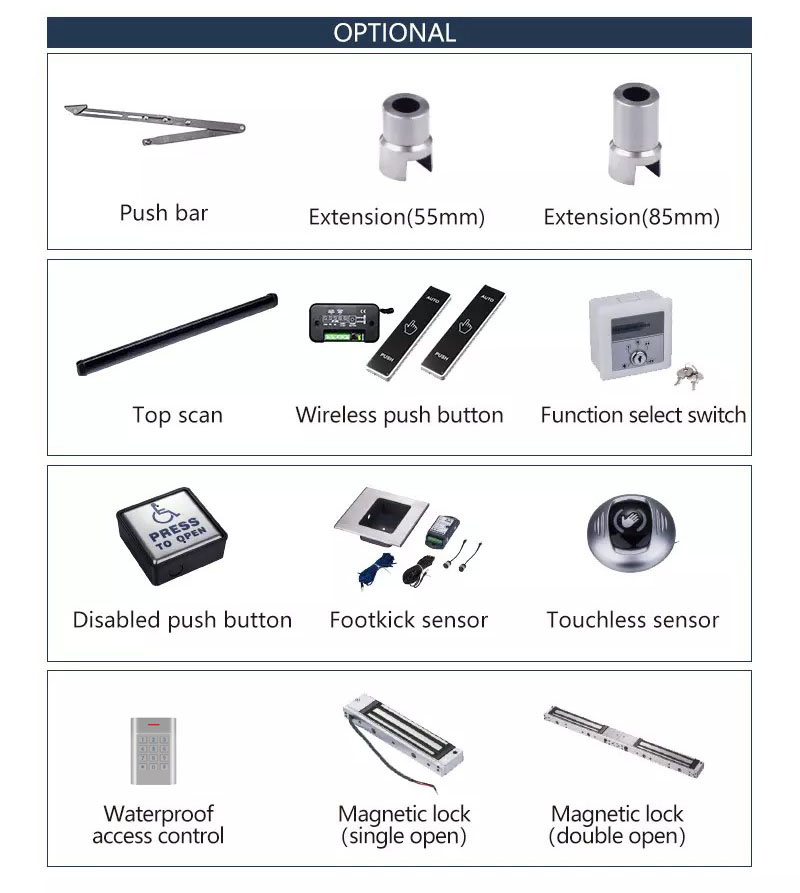

>Push bar & Pull bar optional

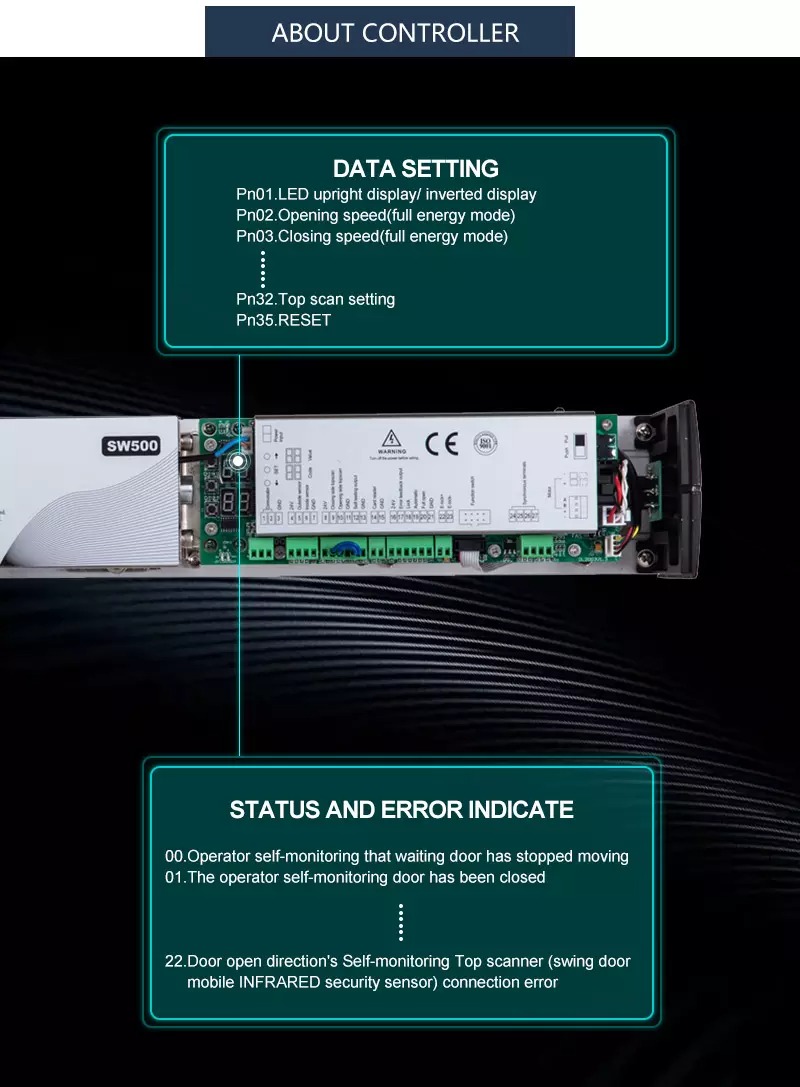

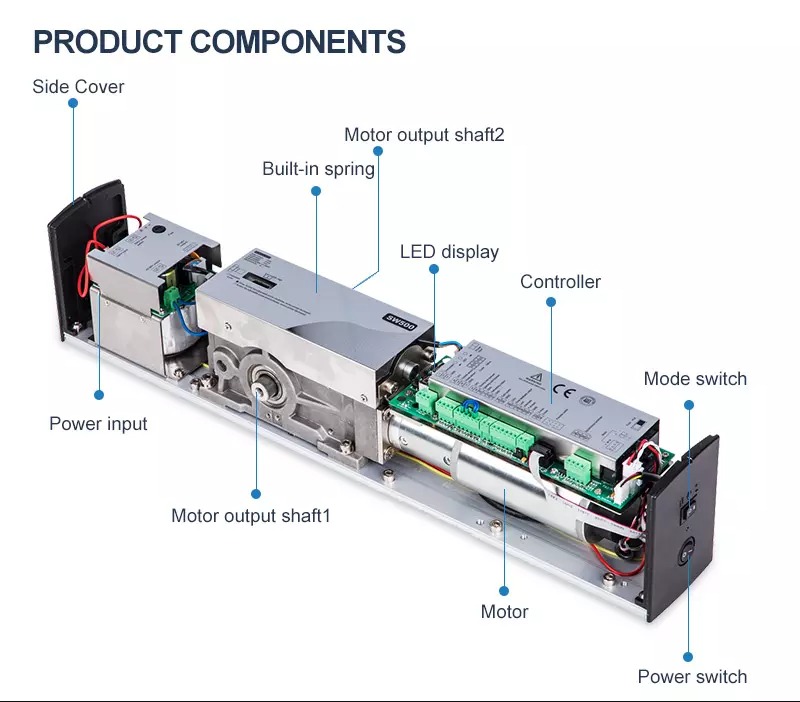

>Controller &Transformer Combined More space saving
>Input Voltage AC100-240

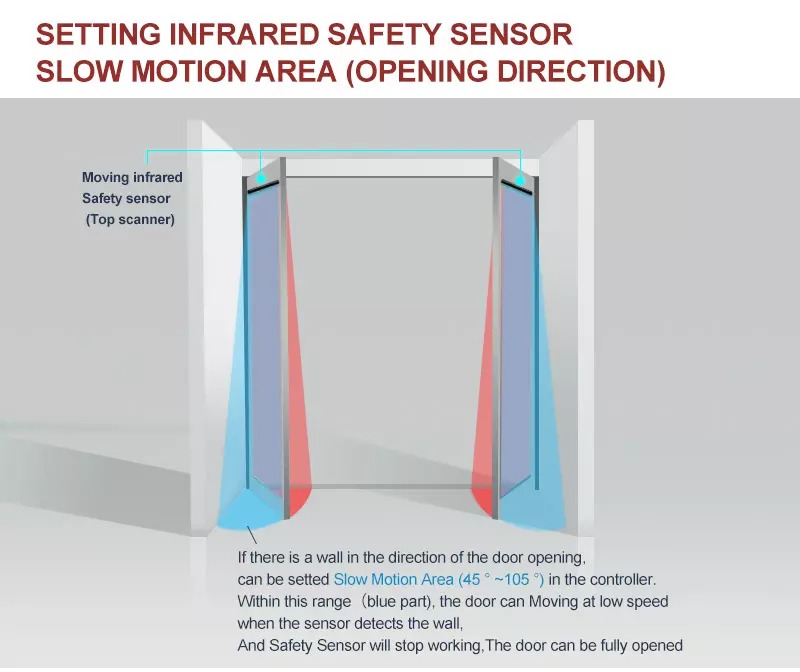

>Sensor can be connected Inside and outside directly Non-interference.
>Lithium battery (optional):The door can keep open for fire control when power off;
Lithium lifecircle after power off: Stand by:14H;Open and close times:800times

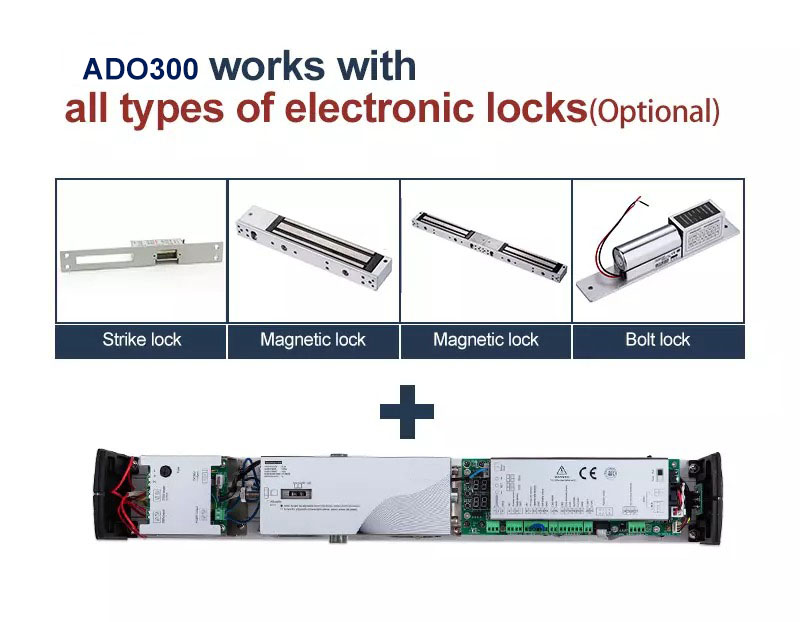

>Directly connecting the lock no need to connect power supply.

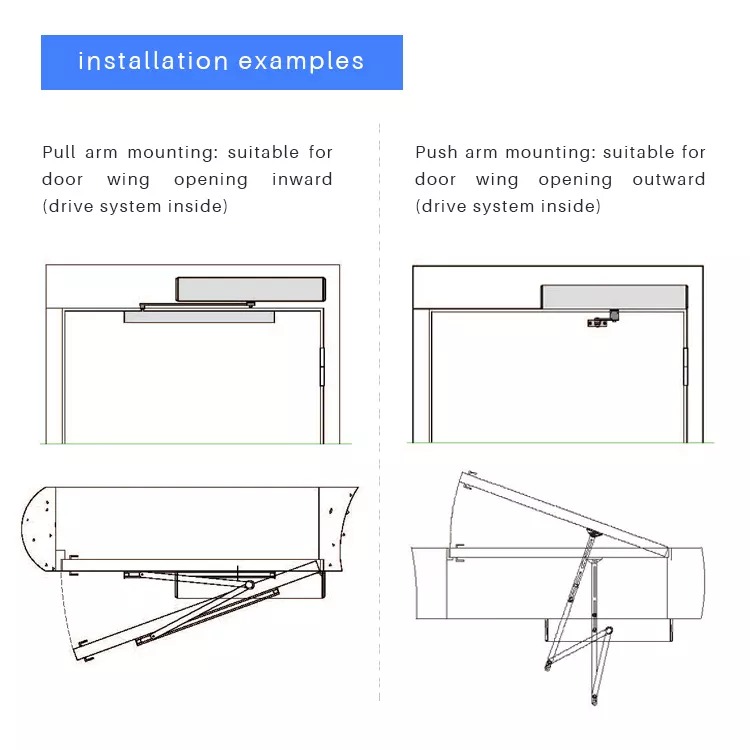

>Specialized combined rail and cover for double open (seperate operator installation optional)

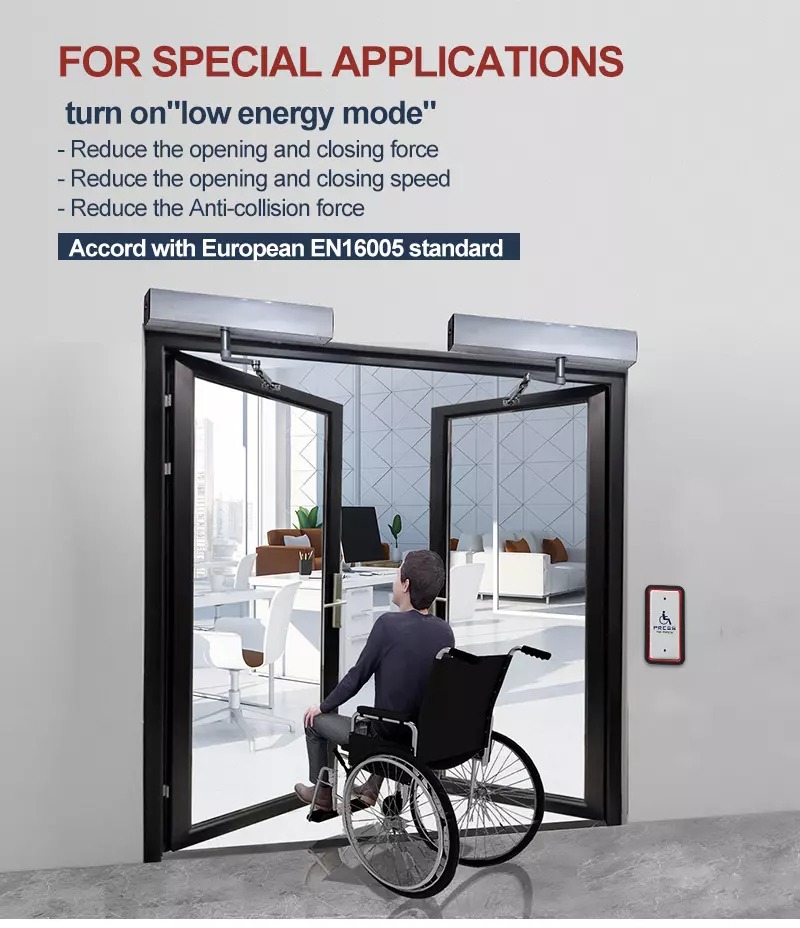

>Can be used for Medical door、Framed glass door、frameless glass door、Wooden door.

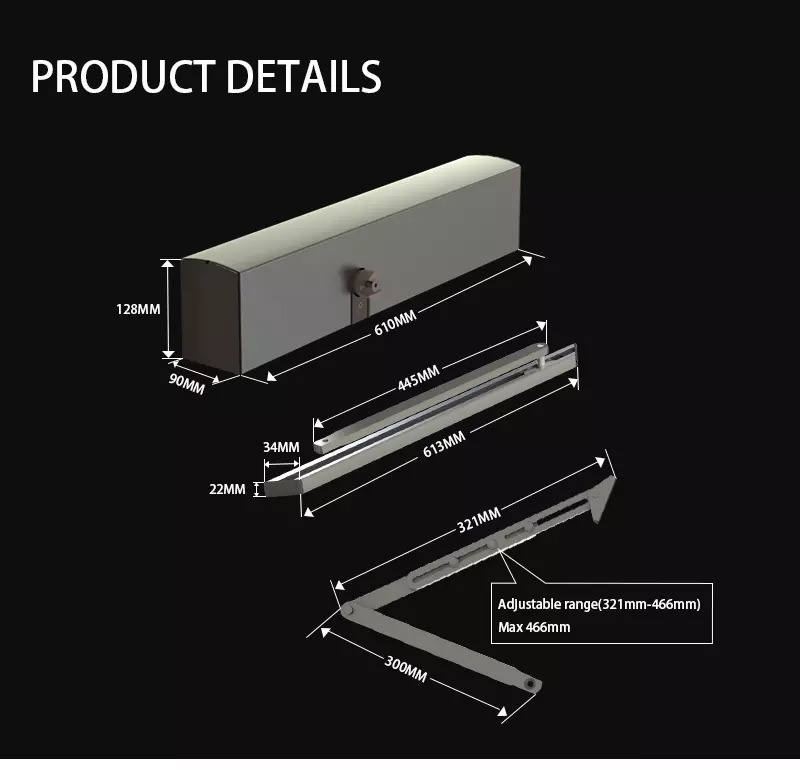

| Size | 610*90*128mm(W*H*D) |
| Power | AC 220V/110V |
| Weight | 13.5kgs |
| Input voltage | AC200-240V 50-60Hz |
| Output voltage | 24DC (±10%),3A |
| Open degree | 105° |
| Open speed | 40°/s |
| Closing speed | 30°/s |
| Opening time | 3-9s(adjustable) |
| Protection class | IP21 |
|
|
